| It is moving-coil panel meter with core-magnet. The meters are suitable for electronic instruments, communication facilities and vehicles to indicate a variety of electric. The specifications are in agreement with GB/T7676-1998. |
| |
| Measuring range and Accuracy Class |
| |
|
Accuracy class |
Unit |
Range |
Remark |
DC Ammeters |
1.5
2.5 |
uA |
50-500 |
Directly connected
(including the range of ≤3A
for models 91C4 and YMC9.) |
mA |
1-500 |
A |
1-15 |
20-3000 |
With external shunt of 75mv |
DC Voltmeters |
mV |
45-750 |
Directly connected |
V |
1.5-600 |
AC Ammeters |
1.5
2.5 |
A |
01.-10 |
Directly connected |
20-3000 |
current transformer |
AC Voltmeters |
V |
10-600 |
Directly connected |
|
| |

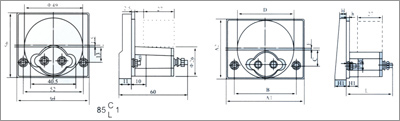

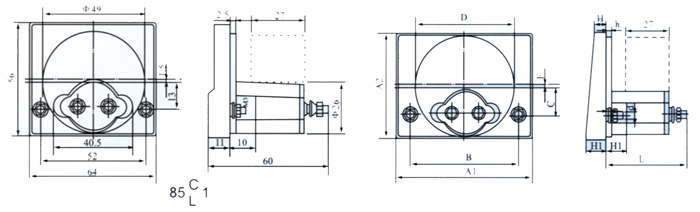

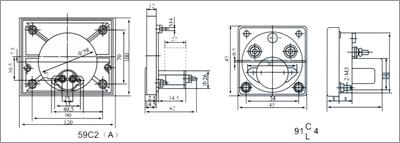

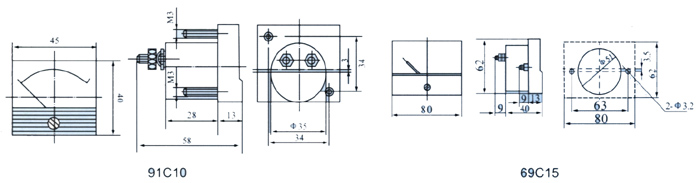

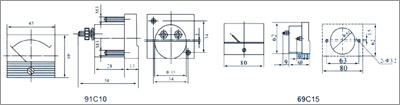

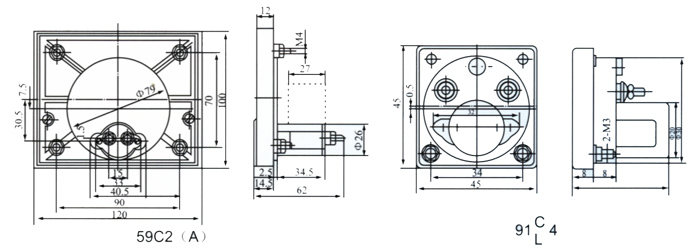

| Dimensions Chat |
| |
|
| |
|
| |
Model\Size |
A1 |
A2 |
B |
C |
F |
L |
D |
H1 |
H2 |
H3 |
h |
d |
44L1 44C2 |
100 |
80 |
68.5 |
21.7 |
7.5 |
46.6 |
ø59 |
14.4 |
12 |
9.6 |
1.6 |
M4 |
69C(L)9 |
80 |
64 |
64 |
17.8 |
1 |
46 |
ø60 |
11.5 |
8 |
11.5 |
4 |
M3 |
69C(L)13 |
80 |
65 |
68 |
|
|
50 |
ø60 |
12 |
10 |
14 |
4 |
M3 |
WXC(L)9 |
55 |
45 |
44 |
|
|
34.5 |
ø27 |
10.5 |
11.5 |
10 |
4 |
M3.5 |
|
| |
|
| |
|
| |
