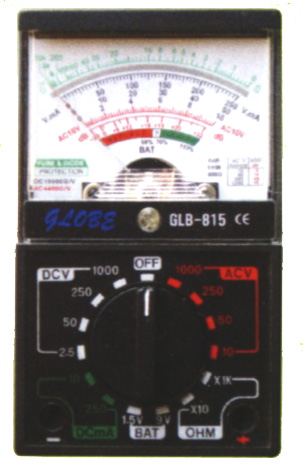

GLB-815
- Range:
- DCV:2.5-50-250-1000V
- ACV:10-50-250-1000V
- DCmA:10-250mA
- Ω:X10.X1K(Mid scale 10)
- BAT:1.5V.9V
- dB:-20-+22dB
- Sensitivity:DC,10K Ω/V;AC.4.4K Ω/V
- Accuracy:±5% F.S
- Size: 105X62X35mm
- Weight:150g

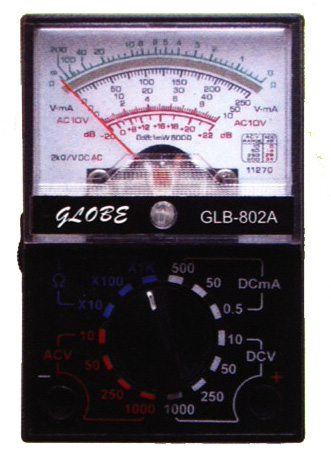

GLB-802A
- Range:
- DCV:10-50-250-1000V
- ACV:10-50-250-1000V
- DCMA:0.5-50-500mA
- Ω:X10,X10,X1K
- Sensitivity:DC,AC.2KΩ/V
- Accuracy:DC.AC.Ω:±5% F.S
- Size: 90X60X30mm
- Weight:150g

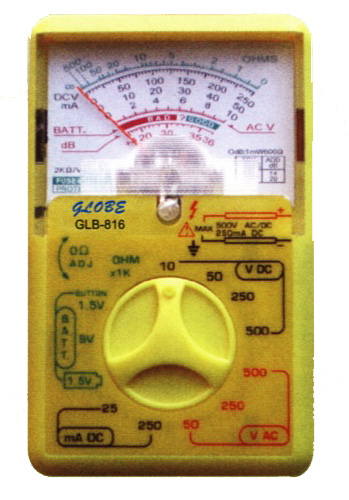

GLB-816
- 3color scale for easy reading
- 13 versatile ranges,side attachable test leads
- 2K Ω/V DC/AC sensitivity
- Battery check function
- Easy to put in pocket
- Fuse & diode protection
- Technical Specifications
- DCV:10-50-250-500V
- ACV:50-250-500V
- DCA:25m-250mA
- OHM:X1KΩ
- BATT:1.SV button-1.5V-9V
- dB:-14-+56dB
- Accuracy:±5% F.S
- Dimensions:64X105X24mm
- Battery:l.5VX1,AAA size
- Weight:100g approx

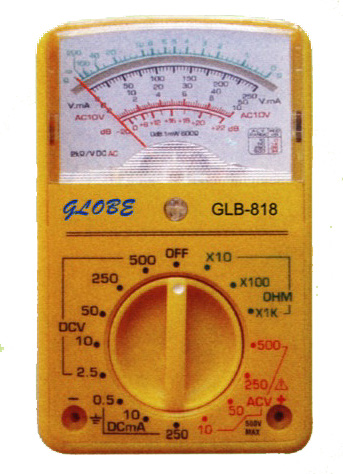

GLB-818
- Range:
- DCV:2.5-10-50-250-500V
- ACV:10-50-250-500V
- DCmA:0.5-10-250mA
- Ω:X10.X100.X1K(Mid scale 5)
- dB:-20-+22dB
- Sensitivity:DCV.ACV:2K Ω/V
- Accuracy:±5% F.S
- Size:96X60X30mm
- Weight:120g

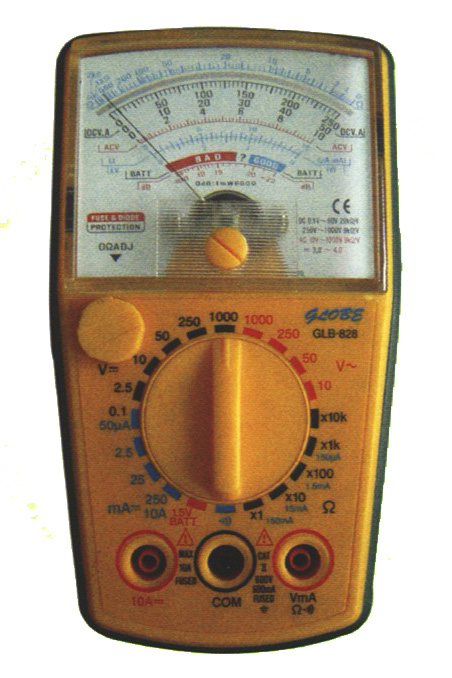

GLB-828
- Range:DCV:0.1-2.5-10-50-250-1000V(±3% ES)
- ACV:10-50-250-1000V( ±4% F.S)
- DcmA:50uA-2.5-25-250mA(±3% F.S)
- DCA:10A(±5% F.S)
- Ω:X1,X10,X100,X1K,X10K(Mid scale20)(±5% F.S)
- BATT:1.5V
- BUILT-IN:BUZZER
- dB:-100-22dB
- Sensitivity:DC 0.1V-50V 20KΩ/V 250V-1000V 9KΩN ACV 10V-1000V 9KΩN
- Size:160X90X41m
- Weight:200g
