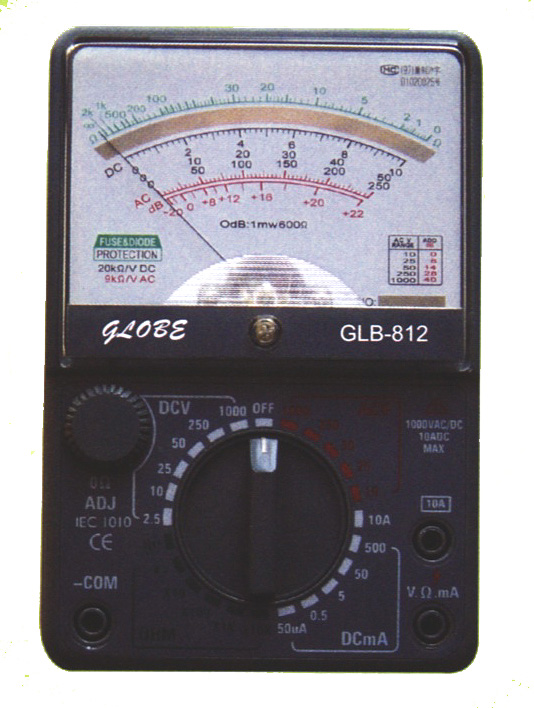

GLB-812(MF182)
- DCV:0-2.5-10-25-50-250-1000V(±3% F.S)
- ACV:0-10-25-50-250-1000V(±4% F.S)
- DCCURRENT:0-50uA-0.5mA-5mA-50mA-500mA-10A(±4% F.S)
- RESISTANCE:RX1-RX10-RX100-RX1K-RX10KΩ(±3% OF SCALELENGTH)
- BUILT-IN:BUZZER
- BATTERY:1.5V(SUM-3)X2 9V(006P)X1
- DIMESIONS:155X104X33MM
- NET WEIGHT:280g

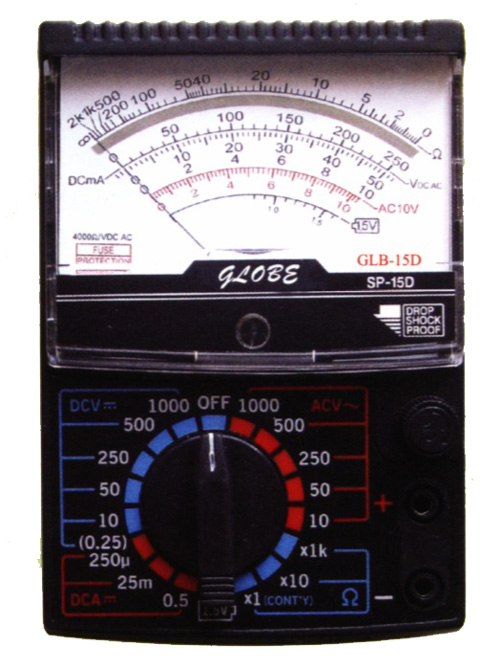

GLB-15D
- A taut-band type is adopted in the meter department.Thisand other shock proof designs enable the instrument to withstand shock even when it is dropped on a concrete floor from one meter height.
- This unit can detemine the capacity of manganese and alkaline batteriesby measuring their voltage when the load is 10Ω.
- By connecting the optional probe THP.the unit can measure temperatures from -20 to +220℃
- DCV=250m/10/50/250/500/1000V ±5%f.s.
- ACV= 10/50/250/500/1000V ±5%f.s.
- DCA=250u/25m/500mA ±5%f.s.
- Ω=200/2K/1MΩ±5% of arc.
- BATT.CHECK=0.8V-1.6V
- Power source=R6(1.5V)X1
- Size.weight=142X97X37mm.200g

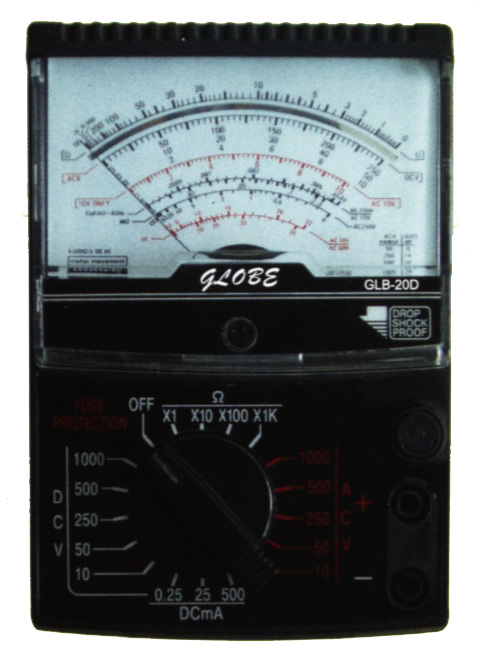

GLB-20D
- A taut-band type is adopted in the meter department.
- This and other shockproof designs enable the instrument to withstand shock even when it is dropped ona concrete floor from one meter height.
- This unit can determine the capacity of manganese and alkaline batteries by measuring their voltage when the load is 10 4.
- By connecting the optional probe THP, the unit can measure temperatures from-20 to +200℃
- DCV=250m/10/50/250/500/1000V ±5%f.s.
- ACV=10/50/250/500/1000V ±5%f.s.
- DCV=250u/25m/500mA±5%f.s.
- Ω=500/25k/1MΩ MAX±5% Ofarc.
- Power source=R6(1.5v)X1
- Size,Weight=140X95X40mm 175g

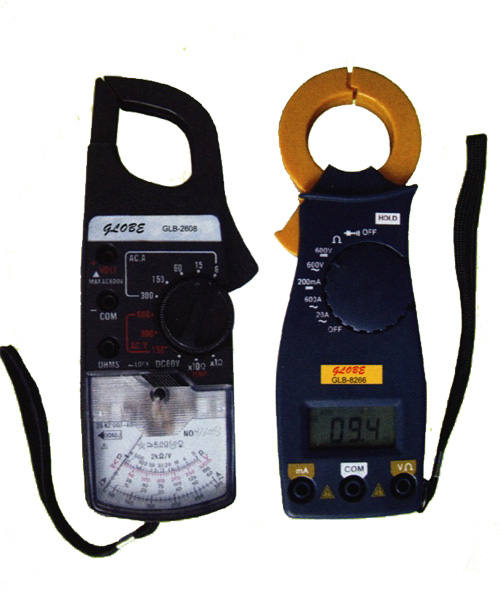

GLB-2608
- 300A AC ANAL OG CLAMP METER
- Versatile Clamp meter with AC current,AC/DC voltage, resistance and temp. measurement
- Tear drop shapeg jaws for easy of use in crowned cable areas Rotary switch for one hand operation
- Pointer lock device to freeze readings
- Overload protection
- Technical Specifications
- ACV=150-300-600V, ±3%
- ACA=6-15-60-300A ±3%(Frequency:50/60Hz)
- DCV=60±3%
- OHM=1K-10KΩ,±2%
- TEMP=-20 to l50℃,±3%
- Audible continuity
- Clamp size=33mm(Max.)
- Dimensions=78X193X39mm
- Battery=l.5VX1,AAsize
- Weight=280g approx.
- Accessories=Carrying case,temperature probe(optional)

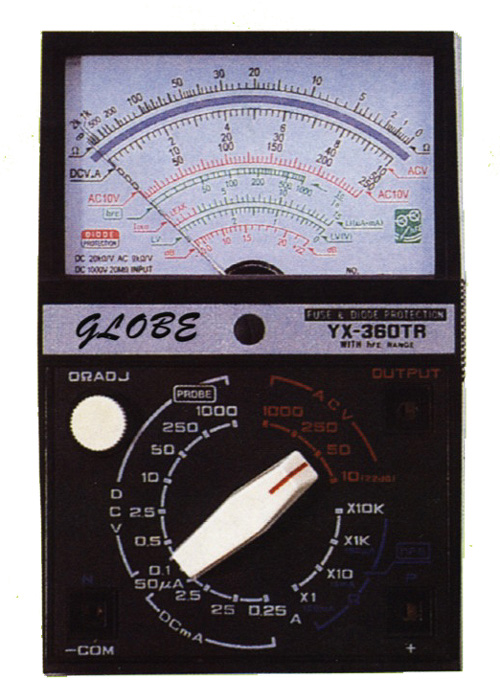

YX360TR FEATURES & SPECIFICATIONS
- Excellent DC resolution factor of 2mV and expanded resistance measurement from 0.2Ω to 20MΩ.
- Series capacitor terminal (OUTPUT) blocks DC to enable measurement of only AC components.
- A large and bright meter with a scale length of 80mm and its sensitivity of 44uA at full scale.
- Fuse and diode protection.
- Measures hFE to 1000 using optional TR connector.
- DCV=100m/500m/2.5/l 0/50/250/1000V(20KΩ/V) ±3%.f.s 25KV(with HV probe)
- ACV= 10/50/250/1000V(9KΩ/V)±4%f.s.
- DCA=50u/2.5m/25m/250mA±3%f.s.
- Ω=2K/20K/2M/20MΩ MAX ±3% of arc.
- dB=-10-50dB
- LI=150u/15m/150mA
- hFE=0-1O00(W/TR connector)
- Power source=R6(1.5V)X2,6F22(9V)X1
- Size,Weight=150XlO0X50mm 280g
